Miniature Infrared Sensor, 10:1 distance-to-target ratio

Miniature Infrared Sensor, 10:1 distance-to-target ratio Reviews

Other Picture

Miniature Infrared Sensor, 10:1 distance-to-target ratio Feature

• Cole-Parmer Compact Infrared Sensors with Transmitters
• CE Compliance: Yes
• Type: Infrared Sensor
• Min temperature (° C): 0
• Max temperature (° C): 49
• Min temperature (° F): 32
• Max temperature (° F): 160
• Voltage input: No
• Distance to target size ratio: 10:1
• Emissivity: Adjustable
• Accuracy (° C): Type J and K thermocouple outputs: ±1% of reading or ±2.5°C, whichever is greate
• Repeatability (° C): ±0.5% of reading or ±0.5°C, whichever is greater
• Repeatability (° F): ±0.5% of reading or ±1°F, whichever is greater
• Resolution (° F): 0.5
• Resolution (° C): 0.3
• Response time: 150 msec (95% of reading)
• Part Number: AO-39667-10
• Package Quantity: EACH

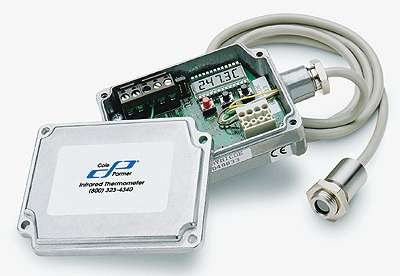

Economical sensors include a miniature sensing head and separate electronics connected by a 3-ft cable. NEMA 4 (IP65) housing protects both the sensor and electronics. The sensor is housed in rugged stainless steel; electronics are housed in die-cast zinc. Sensors have the features of larger IR temperature measurement systems—adjustable emissivity, peak hold, valley hold, and averaging capabilities. Adjust these features using the 5-digit LCD interface. Economical price and easy installation make it ideal for placing it among multiple points along the process. Select from scalable 4 to 20 mA, 0 to 20 mA, 0 to 5 V, and J- or K-type thermocouple outputs. Select your sensor with a 2:1 or 10:1 distance-to-target-size ratio. Sensors include 3-ft cable, one mounting nut, and manual.
