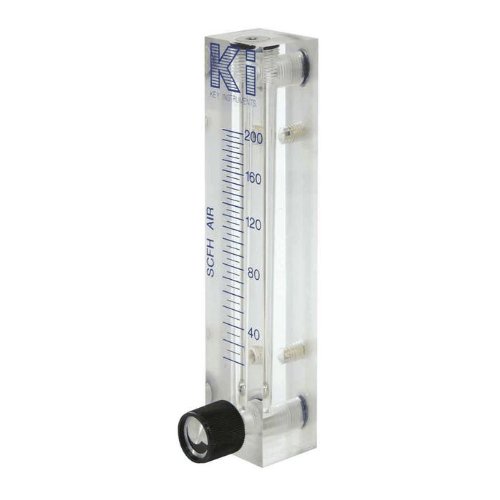

Cole-Parmer Direct Reading Valved Block-Type Flowmeter for Air Applications; English, 5" Scale, 4-5

Cole-Parmer Direct Reading Valved Block-Type Flowmeter for Air Applications; English, 5" Scale, 4-5 Reviews

Other Picture

Cole-Parmer Direct Reading Valved Block-Type Flowmeter for Air Applications; English, 5" Scale, 4-5 Feature

• Valved Acrylic Flowmeters for Bench or Panel Mount
• Durable single-piece body withstands severe shock and vibration
• Ideal for process plant applications on air sampling equipment, gas analyzers and chemical feed
• systems for water treatment
• Flexible design allows for panel or bench mounting
• Material (fitting): PVC
• Material (o-ring): Buna-N
• Material (float): 316 SS or glass
• Material (Housing): Acrylic
• Max operating temperature (° F): 150
• Max operating temperature (° C): 65
• Max pressure: 100 psi
• Process connection: 1" NPT(F)
• Repeatability: ±0.5% full-scale
• Type: Variable Area, Direct Reading
• Use with: gases
• Dimensions: 1 3/4"W x 10 7/8"H x 4 3/4"D
• Valve: Yes
• Materials of construction: Brass valve
• Accuracy: ±2% full-scale
• Brand: Cole-Parmer
• Model: FR5A51PV-D
• Part Number: AO-32470-41
• Package Quantity: EACH

Machined from solid acrylic blocks, these meters have integral metering tubes that provide precise readings even in aggressive plant environments. The meters' inlet/outlet ports and mounting studs are extended for easy panel installation. An alternate option is a tripod base (sold separately below) which allows for mobility from bench to bench. Note: There are many additional types of acrylic flowmeters not listed here. Contact our Application Specialits for quotes on acrylic meters with special requirements.
